Car Paint Thickness Tester

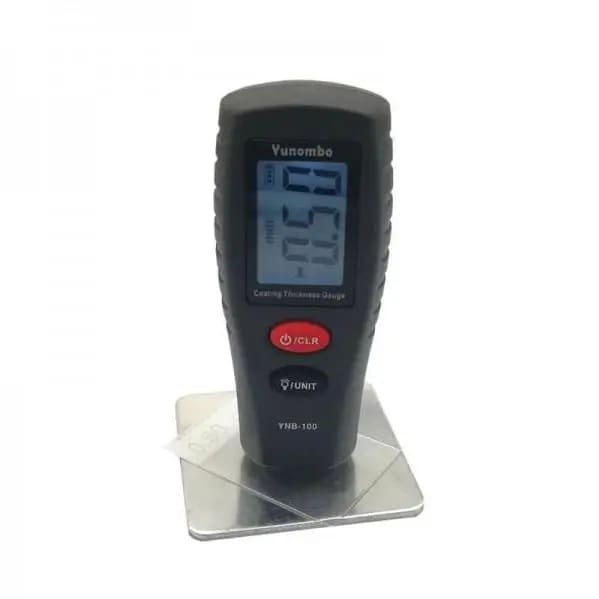

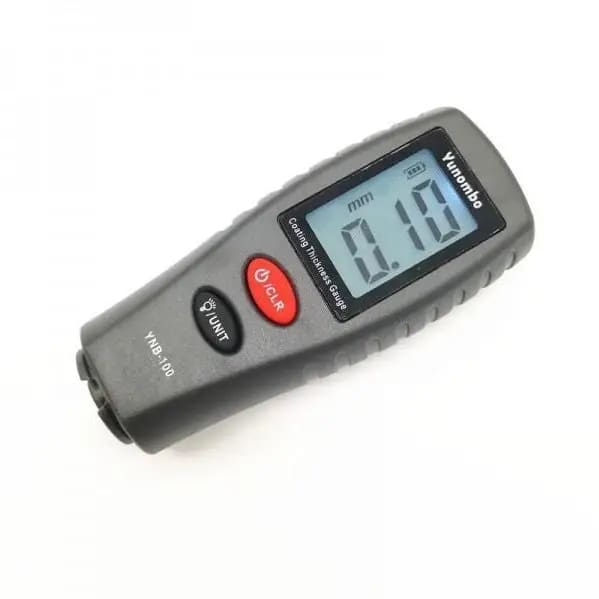

Ensure precise vehicle paint inspections with the YNB-100 Car Paint Thickness Tester.

This non-destructive gauge accurately measures the thickness of paint and other non-metallic coatings on metal surfaces, helping maintain quality and detect inconsistencies.

Main Features:

• Measures non-metallic coatings such as paint, film, and more on metal substrates

• Quick, accurate, and non-destructive readings

• Ideal for vehicle surface paint inspections and other coating measurements

• Compact, portable design for convenient handling

• CE certified for reliable performance

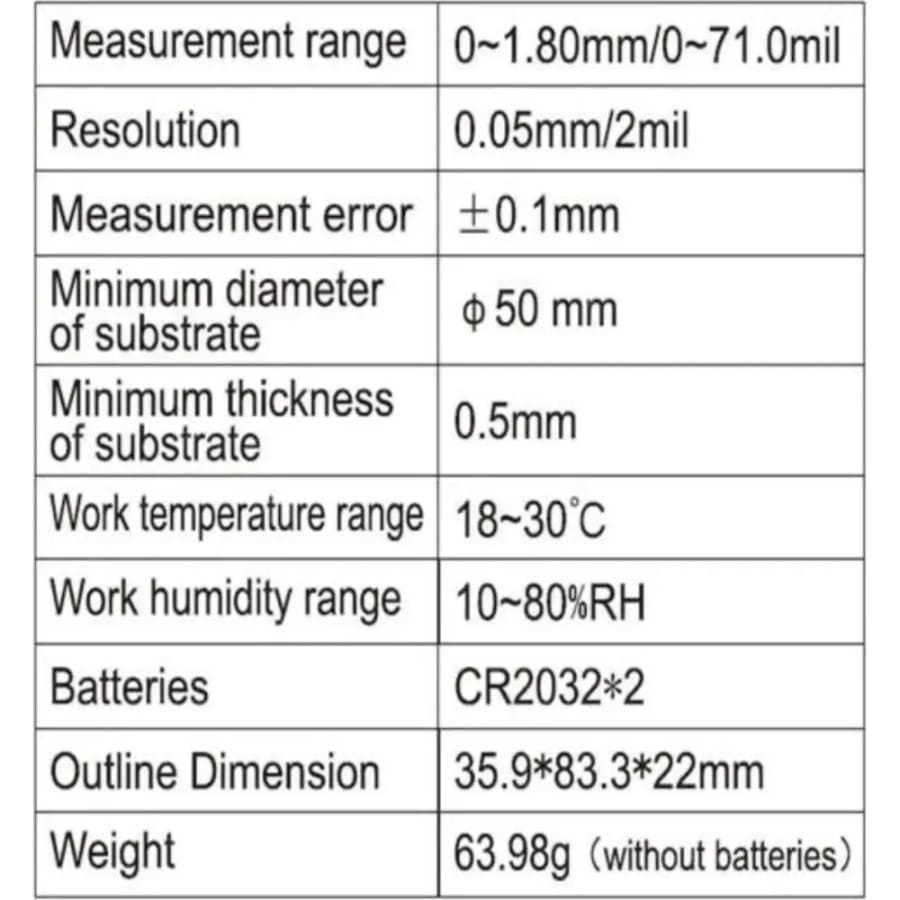

Specification:

• Measurement Range: 0–1.80 mm / 0–71.0 mil

• Resolution: 0.05 mm / 2 mil

• Measurement Error: ±0.1 mm

• Minimum Substrate Diameter: 50 mm

• Minimum Substrate Thickness: 0.5 mm

• Working Temperature: 18–30 °C

• Working Humidity: 10–80% RH

• Power: 2 × 3 V CR2032 batteries (not included)

• Dimensions: 35.9 × 83.3 × 22 mm

• Weight: 63.98 g (without batteries)
